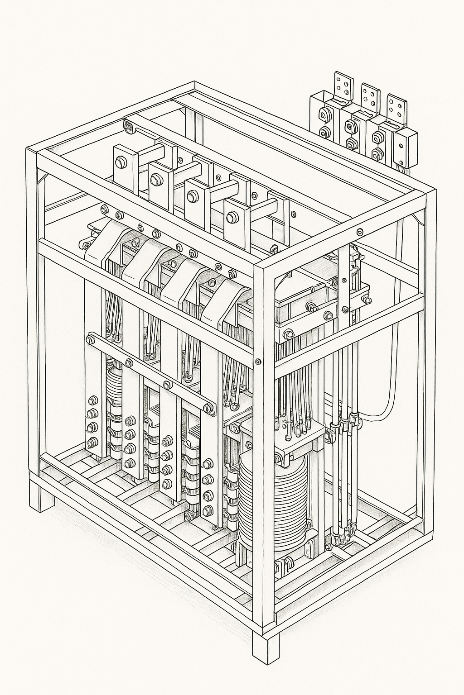

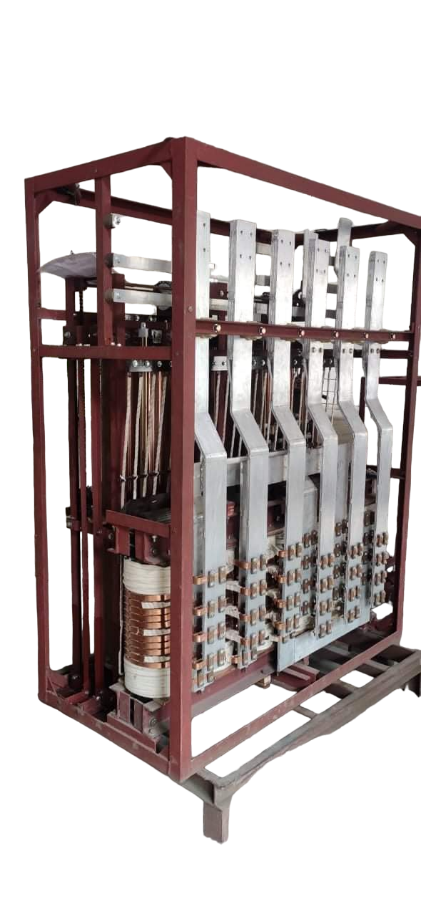

Rolling contact Servo Stabilizer
Rolling contact Servo Stabilizer
effelon+ Rolling Contact Servo Voltage Stabilizers are built to handle heavy voltage fluctuations with precision and reliability.
Powered by a robust servo motor and carbon brush system, they deliver smooth, spark-free voltage correction that keeps your equipment safe and efficient.
With copper winding, digital control, and high efficiency, these stabilizers are made for industries that can’t afford downtime.
Effelon+ — When every volt counts.
Capabilities
High Accuracy Voltage Correction
Maintains output within ±1% even under heavy load or voltage fluctuations.
100% Copper Wound Transformers
Ensures superior conductivity, minimal heat loss, and long-term reliability.
Energy Efficient Design
High efficiency (up to 98%) ensures reduced power losses.
Durable Construction
Heavy-gauge CRCA sheet enclosure with powder coating for industrial-grade durability.
Technical Specifications
Parameter | Specification |
Capacity Range | 1 KVA to 5000 KVA |
Input Voltage Range | 170V – 270V / 140V – 270V / Custom on request |
Output Voltage | 230V ±1% (Single Phase), 400V ±1% (Three Phase) |
Correction Speed | 35 V/sec (average) |
Efficiency | > 98% |
Type of Cooling | Air / Oil cooled as per model |
Waveform Distortion | Nil |
Insulation Resistance | > 5 MΩ |
Temperature Rise | < 40°C above ambient |
Operating Frequency | 47 – 53 Hz |
Duty Cycle | Continuous |
Mounting Type | Floor / Wall / Panel Mounted |
Protection | Overload, Short-circuit, High/Low voltage, Single phasing |
Display | Digital (Voltmeter, Ammeter, Load Current) |
Construction | CRCA Sheet Metal Cabinet (Powder Coated) |
