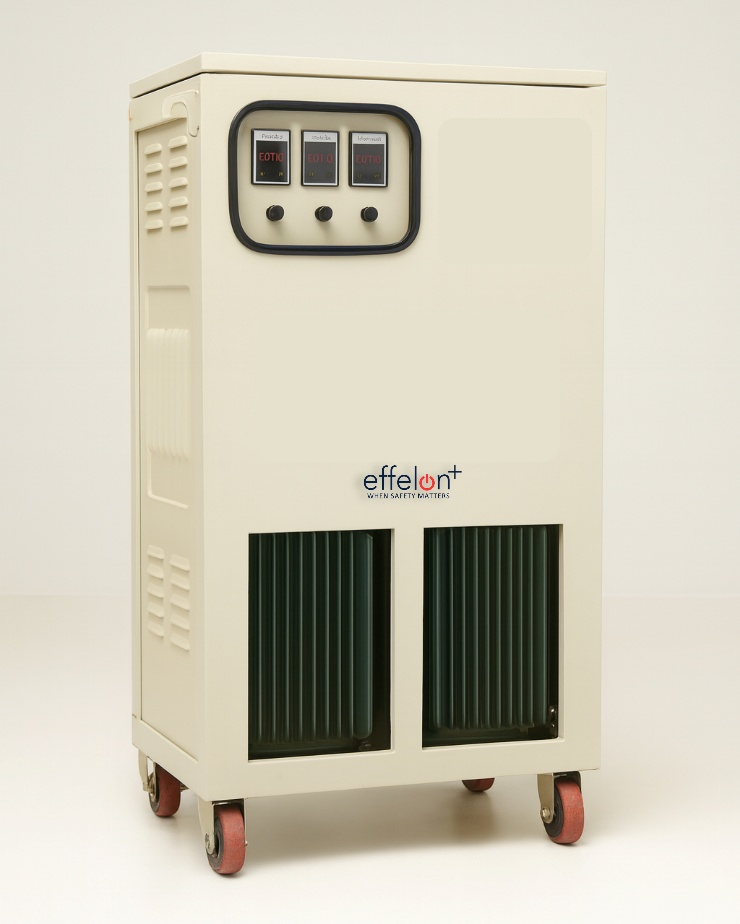

IGBT Static Voltage Stabilizer
IGBT Static Voltage Stabilizer
Effelon+ IGBT Static stabilizers deliver ultra-fast, maintenance-free voltage correction using PWM IGBT electronics. No moving parts, silent operation, and tight regulation for critical loads like data centers, hospitals, and automation lines.
Protect your systems. Power with confidence.
Capabilities
- Instantaneous correction, fast transient response
- Tight regulation within ±1% under dynamic loads
- Silent operation, no brushes or motors
- Wide input window with seamless output stability
- Low losses with high efficiency topology
- Advanced protections with event logging and remote alerts
Technical Specifications
Capacity range | 10 kVA to 2000 kVA (higher on request) |
Input range (typical) | 170–270 V (1φ), 300–470 V or custom wide window (3φ) |
Output voltage | 230 V ±1% (1φ), 400 V ±1% (3φ) |
Response time | < 10 ms (electronics), < 20 ms effective regulation |
Regulation method | PWM IGBT buck-boost, true RMS sensing |
Efficiency | ≥ 97% (at rated load) |
THD added | < 1% |
Cooling | Forced air; optional redundant fans on high kVA |
Display | Digital V/A, alarms, logs; optional HMI with IoT |
Protection | Over/under V, overload, short-circuit, over-temp, phase fail |
Bypass | Manual/auto bypass options |
Duty cycle | Continuous, 47–53 Hz |
Construction | Industrial-grade cabinet, copper bus, serviceable modules |
